LT 800

LT 800 - NEW GENERATION INK JET PRINTER Quick InquiryDownload Brochure

LT 800 LT 800 Series is the Leading Ink Jet Printer with advance features, Ease in handling, Operator Friendly, Reliable and Smart Printer. 7inch HD Display with Patented Unique LT – TOUCH Operating System. Stainless Cabinet, Robust, Durable with Excellent Aesthetic Look.

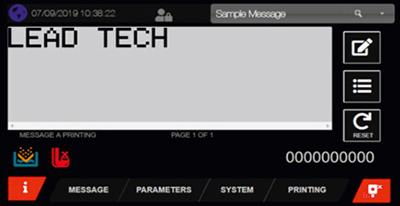

LT 800 operation
  • Simple Operation.
  • 7 – Inch Touch Screen, Support Multiple Languages, Patented LT –Touch Operation.

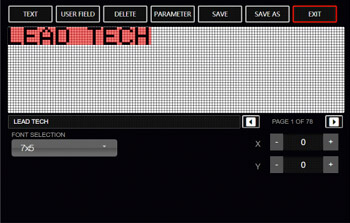

LT 800 editor

Redefine the Information Editor, Support Drag and Drop Editing, More Diversified Contents.

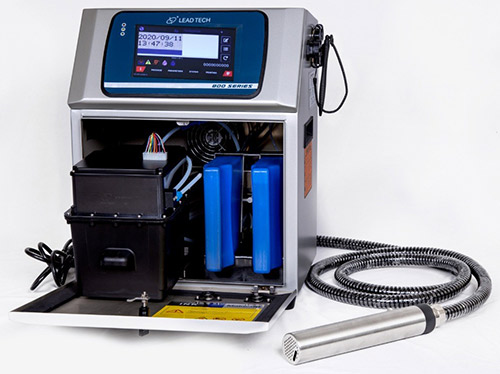

LT 800 design
  • Modular design – integrated ink core system
  • More stable and reliable, easy to maintain due to less spare parts

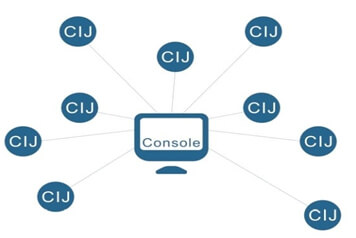

LT 800 system
  • Network Base System
  • Monitor by one System – up to 255 printers
  • Fully Controlled by PC
  • Remotely real- time Monitoring & Editing
  • External Communications
BUILT – IN HELP

BUILT – IN HELP

Installation Video

Installation Video

Trouble- shooting Guidance

Trouble- shooting Guidance

In-built Service Manual

In-built Service Manual

LT 800 print head

UPGRADED PRINT HEAD – Modularized, Lesser Spare Parts – Easy to Maintain

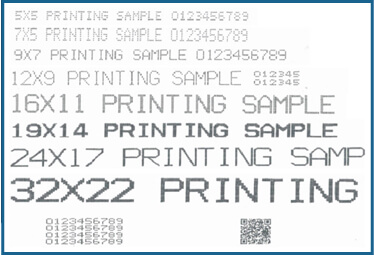

LT 800 font beauty

Optimizing Font Beauty – Customize fonts available

Product Details

Printer Model : LT 800 Series
Printing Lines : Up to 5 Lines
Nozzle SIZE : 60µm
Print Height : 1-12mm, depends on the font
Printing Distance : 2mm-20mm, Ideal distance -10mm
Printing direction: 360 degree all- round Printing
Temperature: 0-45 Degree C
Humidity Range: 0-95% Relative humidity, non- condensing
Power: AC100-240V 50/60Hz, 60VA
Net Weight : 18kg.
Data Interface: USB, RS485, ETHERNET
PROTECTION : IP 65

For More details – Download the product brochure
